CAPACITY: PROCESSING MAIZE 500T/24H
WORSHOP REQUEST: (L*W*H) 37M*11.5M*22.5M  FIVE FLOOR BUILDING;
                                           CONSTRUCTION REQUEST: 400KG/㎡
                                           (NOT INCLUDE THE FINISHED PRODUCT BIN)
TOTAL POWER IS AROUND 1100KW (DEPENDING ON EXACTLY DESIGN)

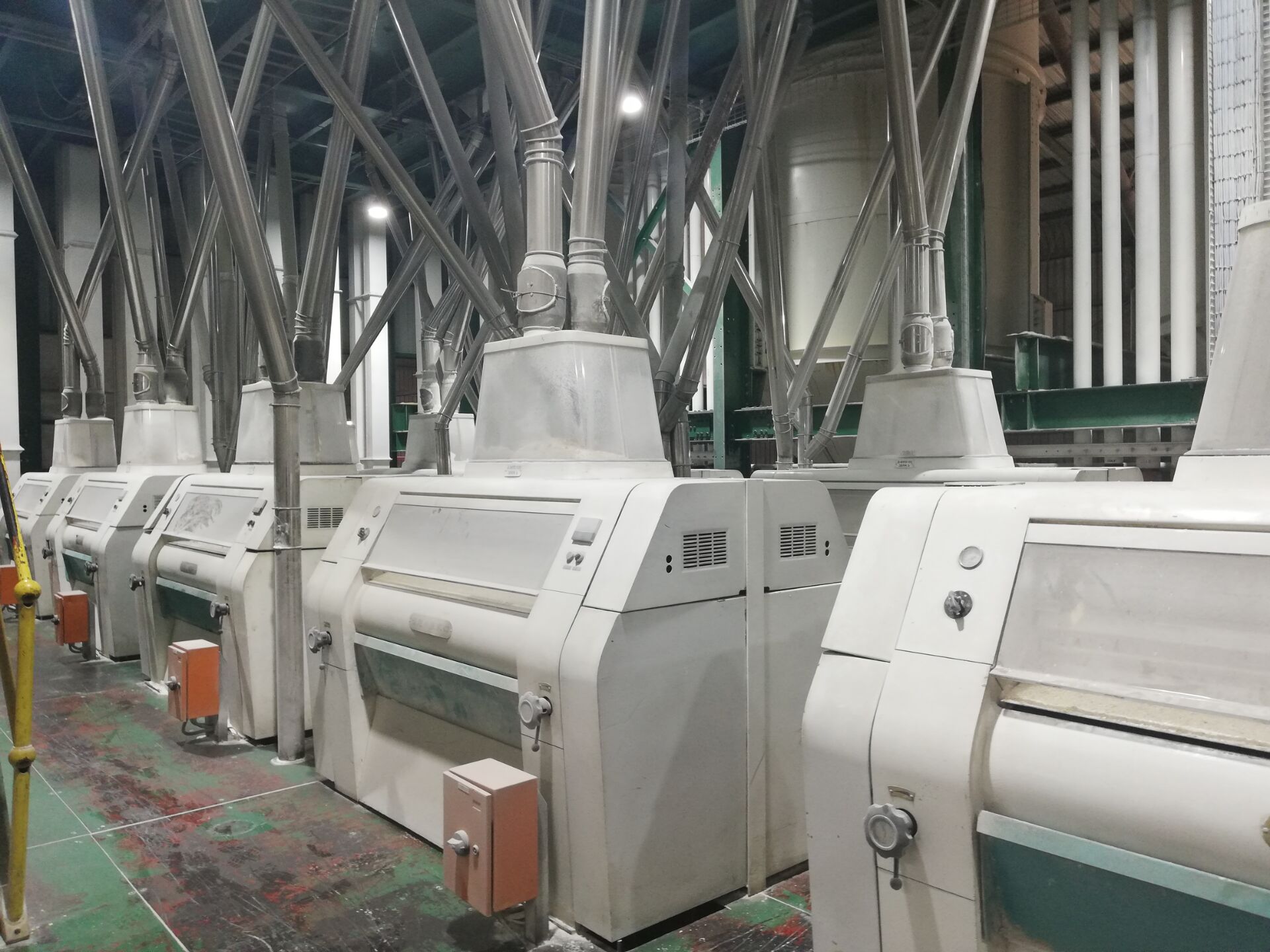

1. Roller Mills
       1) The partitioned paneling and swing-out feed module guarantee ideal access to the feeding and grinding rolls. This makes residue-free  cleaning possible.
       2) a pulse generator automatically adjust the feed material at the entrance door
       3) temperature monitor (option)

2. Roller: Two different alloys with a mixing ratio allow the perfect balance  to be achieved between hardness and roughness.
3. Plansifter
       1) Material: High-strength alloy steel
       2) up and down sifter circles with steel plate overall by bending
       3) Transmission system using spring force component institutions
       4) Sieve frames of wood coated with synthetic resin, without backwire
       5) All the inside walls as well as the doors are provided with high-grade insulation
       6) Vertical and horizontal clamping system

4. Degerminator
Dry degermination with low fat content. Combined with Europe, Asia and AfricaTechnology.
Multi-faceted sieve tube design, The high-quality stainless steel  nitriding treatment sieve

5. Gravity grading sifter: Combined globoidal and Plane sifting form, different weight nature classification
6. Dampener: Stainless steel. Bi-directional screw, Prevent free water, an intensive  Intermixing (maize)
7. Bucket elevator and conveyor with reducer, High-quality carbon steel painting, stainless steel (option)
8. PIPE: stainless steel
9. Moisture bin and store bin: stainless steel (for maize )

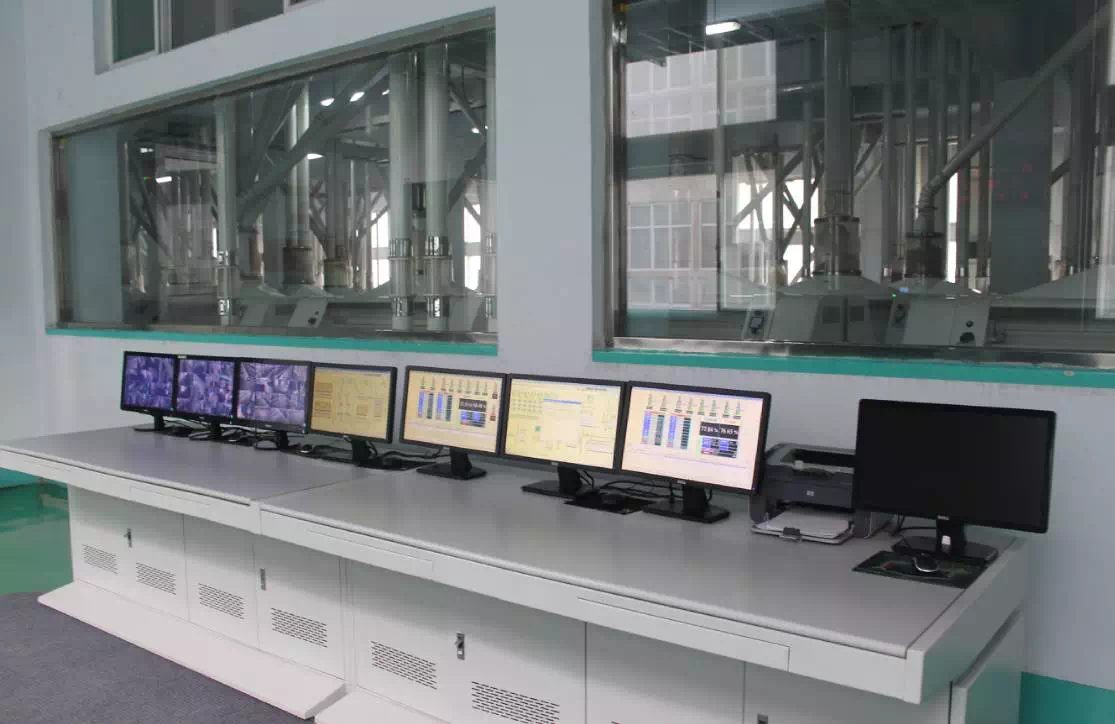

10. Plant Control System :
       Option 1: mimic board, auto-control; CCTV surveillance system
       Option 2: PLC control system with CCTV surveillance system realize Seamless integration
