Here is 200 Maize milling machine details

HDFM200 Maize milling machine with auto roller mill and plansifter steel structure

Which capacity does this HDFM200 MAIZE MILLING MACHINE?

HDFM200 MAIZE MILLING MACHINE milling maize 200Tons per 24h, and the final product can be big maize rice, maize grits, maize meal, maize flour

When this HDFM200 MAIZE MILLING MACHINE running,How long time need maintain?

This is nor fixed time, when the machine running, the miller have to working properly, if there is something wrong, should correct on time, and the miller need to check the flour quality, according the market request to adjust the machine. For maintain normally 3-6month can make a full maintain.

How much electricity request ?

600KVA; 380V, 50Hz, 3phase (there is some countries, the electricity specification is different with China, before order the machine, the buyer have to five information for the electricity), according to different machine, the power consumption may also different.

How about the workshop building request ?

42M*12M*13M(can design according the client details)

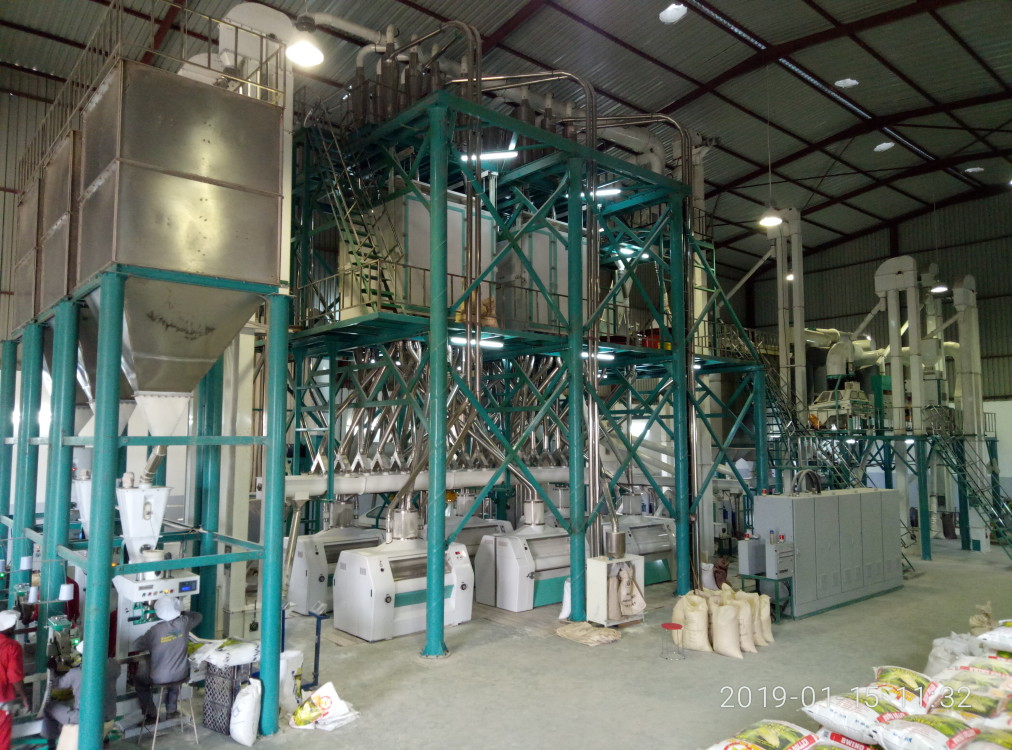

This is the technical flow of the maize milling machine

Cleaning section: first the maize through the maize cleaner, and destoner to take the stone, thread, iron and other impurity out

Moisture and degerminator: the cleaning maize going to the moisture dampener and degerminator to get the big maize rice, and take the germ and maize skin out.

Milling and sifter: the big maize rice come to the roller mill and sifter to get the final product like super maize meal, maize grits, maize flour.

Packing system: the maize meal/maize grits etc come to the packing system packing in different kind of bags.

The core technologies of our group are in the filed of maize and wheat mill process engineering, with European technology, South Africa maize process, China wheat process, roll out unique and innovative wheat flour and maize meal processing line. It has the following features:

1. Roller Mills

    1) The partitioned paneling and swing-out feed module guarantee ideal access to the feeding and grinding rolls. This makes residue-free cleaning possible.

    2) a pulse generator automatically adjust the feed material at the entrance door

    3) bearing SKF

2. Roller: Two different alloys with a mixing ratio allow the perfect balance to be achieved between hardness and roughness.

3. Plansifter

   1) Material: High-strength alloy steel

   2) up and down sifter circles with steel plate overall by bending

   3) Transmission system using spring force component institutions

   4) Sieve frames of wood coated with synthetic resin,without backwire

   5) All the inside walls as well as the doors are provided with high-grade insulation

   6) Vertical and horizontal clamping system

4. Degerminator :

    dry degermination with low fat content. Combined with Buhler and Satake Technology. Multi-faceted sieve tube design,the screen The high-quality stainless steel nitriding treatment

5. Gravity grading sifter:

    Combined globoidal and Plane sifting form ,different weight nature classification

6. Dampener:

    Stainless steel. Bi-directional screw,Prevent free water,an intensive Intermixing

7. Bucket elevator and conveyor

    with reducer, High-quality carbon steel painting

8. PIPE: stainless steel

9. Moisture bin and store bin: stainless steel

10. Plant Control System : mimic board,auto-control

11. Electronic parts: Siemens/Delixi

12. Dedusting system: High Energy and  efficient blower  work with air-jet dust filter, dust content < 10mg/m3
